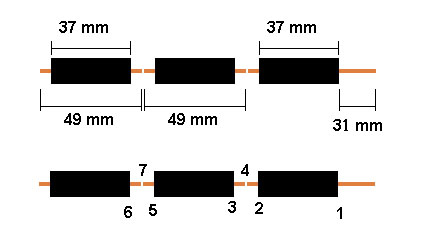

Cara Membuat Antena Wifi Omni

Beberapa jenis peralatan bekas yang sering digunakan untuk membuat penangkap sinyal yaitu tutup panci, CD bekas, kaleng dan lain sebagainya. Namun secara teori sebenarnya cara tersebut tidak bisa dipastikan apakah benar-benar dapat menangkap sinyal WiFi jarak jauh atau tidak.

Berikut catatan beberapa peralatan outdoor akses point yang bisa digunakan untuk wifi maupun repeater :

TP LINK EAP 110 – 2,4 GHz

  • Harga sekitar 500 ribuan
  • 300Mbps Wireless N Outdoor Access Point,
  • Qualcomm,
  • 300Mbps at 2.4GHz, 802.11b/g/n,
  • 1 10/100Mbps LAN,
  • Passive PoE Supported,
  • Centralized Management,
  • Captive Portal,
  • Multi-SSID,
  • 5dBi External Omni Waterproof Antennas,
  • Power CE:≤ 20dBm , FCC: ≤ 30dBm
  • IP65-rated Dustproof/Weatherproof Enclosure,
  • 6KV Lightning Protection,
  • Pole/wall Mounting

ENGENIUS ENS202 EXT – 2,4 GHz

Bekerja pada frekuensi 2,4 GHz, termasuk dua buah antena 5 dBi harga di atas 1,3 juta.

EnGenius ENS202EXT is a high-powered, long-range 2.4 GHz Wireless N300 Outdoor Access Point delivering data rates up to 300Mbps and is ideal for providing connectivity to a small business network and its Internet connection for restaurant patrons, or for students and employees in educational or corporate campus venues.

It features two omni-directional 5 dBi MIMO (Multiple In/Multiple Out) antennas that coupled with its strong transmit power of up to 400mW make it a compelling performance solution for small and growing businesses at a very affordable price. ENS202EXT has an IP65 rated weatherproof housing that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat or continuous moisture.

UBIQUITI ROCKET M2 – 2,4 GHz

Harga di atas 1 juta tidak termasuk antena, bekerja pada frekuensi 2,4 GHz. Specifications:
~ Freq 2.4Ghz
~ CPU Atheros MIPS 24KC, 400MHz
~ Memory 32MB SDRAM, 8MB Flash
~ 1x 10/100 BASE-TX (Cat.5, RJ-45)
~ 2x RP-SMA (waterproof) Connector
~ Enclosure Outdoor UV Stabalized Plastic
~ Power Supply 24V 1A DC. Supply and injector included
~ Power Method Passive PoE
~ Tx power 28dBm
~ Operating Temperature -30C to + 75C
~ Weight 0.5kg
~ Compatible Antennas with Rocket Dish 2G, AirMax Sectoral 2G

UBIQUITI Bullet M5hp

Harga di atas 1 juta belum termasuk antena, bekerja pada frekuensi 5 GHz, daya pancar 600mW

EnGenius ENS620EXT

Harga di atas 2 Jutaan dual band 5Ghz hingga speed 867 Mbps dan 2,4GHz hingga speed 400Mbps. Sudah termasuk 4 buat antena 5dBi.

Ubiquiti Unifi Ac Mesh

Harga dikisaran 1,25 juta bisa dual band 5GHz dan 2,4GHZ, termasuk 2 buah antena 3 dBi (5Ghz) dan 4dBi (2,4Ghz)

Ubiquiti PicoStation-M2HP

Harga di atas 1 juta.
Ubiquiti Networks set the bar for the world’s smallest and most powerful Access Point (AP) with the original PicoStation. The Ubiquiti PicoStation M2-HP takes the same concept to the future with integrated airMAX technology. This Ubiquiti PicoStation M2-HP features speeds up to 100+ Mbps and range performance of up to 500 m, and It can be deployed in indoor or outdoor environments, making it ideal for applications requiring medium-range performance and a minimal installation footprint.

System Information
Processor Specs Atheros MIPS 24KC, 400 MHz
Memory 32 MB SDRAM, 8 MB Flash
Networking Interface (1) 10/100 Ethernet Port

Regulatory/Compliance Information
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes

Physical/Electrical/Environmental
Dimensions 136 x 20 x 39 mm
Weight 0.1 kg
Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Wall or Pole Mounting Kit (Included)
Antenna Connector External RP SMA
Antenna (1) External, 2 dBi Omni Antenna (Included)
Operating Frequency 2412 to 2462 MHz
Range
Indoor 200m
Outdoor 500m
Max. Power Consumption 8 W
Power Supply (PoE) 15V, 0.8A Power Adapter (Included)
Power Method Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
Operating Temperature 20 to 70 degress C
Operating Humidity 5 to 95% Condensing

WAV LINK AC600 – 2,4GHz + 5GHz

Harga termurah sekitar 400ribu
Dual frekuensi 2,4GHz dan 5Ghz
dua buah antena 5dBi
Power hingga 100mw
Mode: AP, Repeater, Router.

AC600 AP / Router sebagian besdar digunakan untuk menyediakan layanan WiFi gratis di area besar seperti pabrik, komunitas, jalanan atau lain-lain.
The AP/Router can take an existing 2.4GHz or 5GHz wireless signal,
Membangun-Tenaga Teknologi Tinggi. Dukungan pengulang, AP, router mode. Mengulang dan merentangkan ke jarak yang lebih jauh saat tempat terlalu jauh untuk router atau jalur akses untuk menjangkaunya.

Catatan : Produk ini kurang bagus, AP outdoor tapi hanya memiliki kemampuan seperti AP indoor.

TP INK WA7210N – 2,4GHz

TP-LINK High Power Wireless Access Point TL-WA7210N didedikasikan untuk WISP CPE, solusi jaringan nirkabel jarak jauh. Harga di atas Rp.500.000,-

Fitur ini sampai dengan 500mW daya transmisi nirkabel dan memiliki built-in antena 12dBi dual-terpolarisasi yang menyediakan cara yang efisien untuk menjemput dan mempertahankan sinyal stabil untuk koneksi jaringan nirkabel mulai beberapa kilometer. Bekerja pada frekuensi 2,4 GHz.Iar embedded workbench keygen download for mac.

Layanan WISP, AP akan berperilaku sebagai klien dari Wireless Internet Service Provider (WISP). Dua TL-WA7210Ns dapat membuat titik ke titik link untuk koneksi nirkabel jarak jauh. Terlebih lagi, TL-WA7210N dapat membuat titik untuk link multi-point nirkabel untuk cakupan pelayanan beberapa lokasi.

TP LINK CPE 220 2,4GHz

2.4GHz 300Mbps 12dBi Outdoor CPE. Harga di bawah Rp.500.000,-

Antenna built-in MIMO dual-polarized directional 2×2 12dBi
Kekuatan transmisi yang bisa disesuaikan dari 0 sampai 30dBm/1000mw
Optimisasi tingkat sistem untuk transmisi data wireless jarak jauh sampai dengan 13km
Teknologi TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) meningkatkan throughput, kapasitas dan kinerja latency, ideal untuk aplikasi PTMP
Sistem Manajemen terpusat – Pharos Kontrol
Mendukung mode operasi AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
Adaptor Passive PoE mendukung penggunaan daya melalui Ethernet sampai dengan 60 meter (200 feet) dan memungkinkan perangkat direset secara remote.

Catatan : Produknya bagus, tetapi kalau kabel terlalu panjang suka bermasalah.

TP-LINK CPE210 2,4GHz

Data Rates 300Mbps
Radio Signal Type IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Encryption WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
Operating Frequency 2.4~2.483GHz
Dimensions 224mm x 79mm x 60 mm
Network Connection 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
Antenna Built-in 9dBi 2×2 Dual-polarized Directional Antenna, Beam Width: 65 (H-Plane) / 35 (E-Plane)
Kesesuaian / Kecocokan Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux
Others
SSID Broadcast Enable/Disable
Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Dynamic Frequency Selection (DFS)
WDS Enable/Disable

Tenda O3 – 2,4 GHz

Harga termurah Rp.380.000,- Tenda O3 5km Outdoor Point To Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission.

It features up to 800mW wireless transmission power and has a built-in 12dBi directional dual-polarized antenna which provides an efficient way to pick up and maintains a stable signal for a wireless network connection ranging multiple kilometers.

Tx Power up to 800mw, Frekuensi 2,4 GHz
Wireless BGN 150mbps
Integrated Antenna 12dBi, horizontal 60, vertical 30

TENDA O6 – 5GHz

5GHZ 11AC 433MBPS OUTDOOR POINT TO POINT CPE

O6 5GHz 433Mbps outdoor Point to Point CPE dirancang untuk solusi WISP CPE dan solusi jaringan nirkabel jarak jauh untuk pengawasan video dan transmisi data.

Ini dilengkapi dengan power amplifier eksternal dan antena directional 16dBi built-in untuk memberikan cara yang efisien untuk mengambil dan memelihara sinyal stabil untuk rentang koneksi jaringan nirkabel hingga 10 kilometer.

TOTOLINK CP300 – 2,4GHz

TOTOLINK CP300 adalah Solusi WISP CPE yang didesain khusus untuk transmisi nirkabel jarak jauh. Dengan dua antenna internal yang high gain dan arsitektur radio tingkat advance, dapat membuat jangkauan transmisi sinyal radio lebih jauh dengan koneksi wireless yang stabil dan mengirimkan data hingga 300 Mbps. Ditenagai menggunakan Passive PoE, CP300 memudahkan pembangunan jaringan kabel dan cocok digunakan untuk segala lingkungan dengan desain yang waterproof.

Kisaran harga Rp.500.000,- ke bawah.

– 11 dBi internal Antennas
– Long Distance Transmission
– Protection Design
– Flexible Power Supply by Passive PoE
– Complies with IEEE802.11n /g/b standards on 2.4G band.
– Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions.
– Two powerful internal antennas.
– Multiple APs allows user to add other two SSIDs accordingly.
– 4 LED signal strength indications.
– Supports 64/128 bit WEP encryption and WPA-PSK, WPA2-PSK security.
– Repeater function allows more terminals to access Internet.
– Supports passive PoE power supply.
– Lightning protection design.
– QoS can allocate bandwidth reasonably.

UBIQUITI LocoM2

Harga sekitar 600ribu
Spesifikasi :
– Model : NanoStationM
– Processor Specs : Atheros MIPS 24KC, 400 MHz
– Memory : 32 MB SDRAM, 8 MB Flash
– Networking Interface : (2) 10/100 Ethernet Ports
Regulatory/Compliance Information
– Model : NSM5/NSM2/locoM5/locoM2
– Wireless Approvals : FCC Part 15.247, IC RS210, CE
– RoHS Compliance : Yes
Physical/Electrical/Environmental
– Model : locoM2
– Dimensions (mm) : 163 x 31 x 80
– Weight : 0.18 kg
– Power Supply (PoE) : 24V, 0.5A
– Max. Power Consumption : 5.5 W
– Gain : 8 dBi
– RF Connector : –
– Polarization : Dual Linear
– Enclosure Characteristics : Outdoor UV Stabilized Plastic
– Mounting : Pole Mounting Kit Included
– Power Method : Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
– Operating Temperature : -30 to 75 C
– Operating Humidity : 5 to 95% Condensing
– Shock & Vibration : ETSI300-019-1.4
Operating Frequency Summary (MHz)
– Model : NSM2/locoM2
– Worldwide : 2,412-2,462 GHz
– USA : 2412-2462
– USA DFS : –
Antenna Information
– Gain : 8.5 dBi
– Cross-pol Isolation : 20 dB Minimum
– Max. VSWR : 1.4:1
– Beamwidth : 60 (H-pol) / 60 (V-pol) / 60 (Elevation)

Ubiquiti Nanostaion Loco M5

Harga sekitar 800ribuan
Processor Atheros MIPS 24KC, 400MHz
Memory 32MB SDRAM, 8MB Flash
Networking 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
TX Power 11a: 6-24 Mbps 23 dBm, 54 Mbps 18 dBm
11n: MCS0 23 dBm, MCS15 17 dBm
Receive Sensitivity 11a: 6-24 Mbps -83 dBm, 54 Mbps -75 dbM
11n: MCS0, -96 dBM, MCS15 -75 dBm
Antenna Gain 13 dBi Dual Linear
Cross Polarity Isolation 20 dB min
Horizontal beamwidth 45 / 45
Vertical beamwidth 45
Power supply 24V, 1A POE
Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 -)
Max power consumption 6.5 Watts
Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Pole Mounting Kit included
Size 163 x 31 x 80 mm
Weight 900 gms
Operating Temperature -30C to 75C
Operating Humidity 5 to 95% Condensing

NC-LINK NC-AP211 – 2,4GHz

Features:
Wireless N high speed (up to 300Mbps)
Support 24V Power over Ethernet
Power: 1000mW, Distance: 7KMs
Internal 14dBi directional antenna
Multi-wireless modes to expand the wireless network: Gateway, Repeater, Access Point, WISP, WDS
Outdoor weatherproof and 4000V lightning/15KV ESD protection design

Membuat

Catatan : Stabil power besar

Ubiquiti LiteBeam M5-23

Overview Of Ubiquiti LiteBeam M5-23 23DBI UBNT(LBE-M5-23) – White
Lightweight, Low-Cost Solution
Harga sekitar 700rib

LiteBeam M5 23dbi is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, licensefree 5 GHz frequency range with high-performance speeds.

LiteBeam M5 23dbi combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with costeffective value.

The InnerFeed technology LiteBeam M5 23dbi integrates the entire radio system into the antenna feed, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.

Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency.

Specifications:
~ CPU MIPS 74K
~ Memory 64MB
~ 1x 10/100 Ethernet Port
~ Output power 25dbm
~ Antenna gain 23dbi
~ Dimensions 362 x 267 x 184mm
~ Max. Power Consumption 4W
~ Power Supply 24V, 0.2A PoE Adapter
~ Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
~ Operating Temperature -40 to 70C
